Hydraulic Decoiler

Servosteel Hydraulic Sheet Metal Decoiler Uncoiler

General

Servosteel supplies Hydraulic Decoilers with the coil carriage capacity between 6.000 kg up to 20.000 kg. Coil internal clamping system and discharge (unloading) system is hydraulic. Automatic Coil loading car is also can be provided, upon customer request.

Standard Features

  • Pneumatic top press arm
  • Speed control system
  • Laser sensor loop control system
  • Ability to open from both sides

Technical Specifications

  • Coil Weight: 6.000 kg – 20.000 kg
  • Material Width: 80 mm – 1.600 mm
  • Coil Outer Diameter: 1.600 mm
  • Coil Inner Diameter: 450 mm
  • Mandrel Expansion: Hydraulic

Material Width:

  • 80-600 mm
  • 80-800 mm
  • 80-1000 mm
  • 80-1200 mm
  • 80-1300 mm
  • 80-1500 mm
  • 80-1600 mm

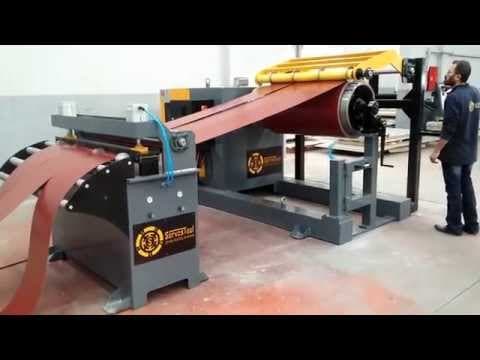

Hydraulic Coil Decoiler Uncoiler Machine

Hydraulic Decoiler Types

6 ton Hydraulic Decoiler 6000 kg Hydraulic Uncoiler

6 ton Hydraulic Decoiler

  • Coil Weight: 6000 kg
  • Coil Width: 80-1000 mm
  • Coil OD: 1600 mm
  • Coil ID: 450-560 mm

read more…

8 ton Hydraulic Decoiler 8000 kg Hydraulic Uncoiler

8 ton Hydraulic Decoiler

  • Coil Weight: 8000 kg
  • Coil Width: 80-1200 mm
  • Coil OD: 1600 mm
  • Coil ID: 450-560 mm

read more…

10 ton Hydraulic Decoiler 10000 kg Hydraulic Uncoiler

10 ton Hydraulic Decoiler

  • Coil Weight: 10000 kg
  • Coil Width: 80-1300 mm
  • Coil OD: 1600 mm
  • Coil ID: 450-560 mm

read more…

12 ton Hydraulic Decoiler 12000 kg Hydraulic Uncoiler

12 ton Hydraulic Decoiler

  • Coil Weight: 12000 kg
  • Coil Width: 80-1300 mm
  • Coil OD: 1600 mm
  • Coil ID: 450-560 mm

read more…

12 ton Hydraulic Decoiler 12000 kg Hydraulic Uncoiler

15 ton Hydraulic Decoiler

  • Coil Weight: 15000 kg
  • Coil Width: 80-1500 mm
  • Coil OD: 1600 mm
  • Coil ID: 450-560 mm

read more…

12 ton Hydraulic Decoiler 12000 kg Hydraulic Uncoiler

20 ton Hydraulic Decoiler

  • Coil Weight: 20000 kg
  • Coil Width: 80-1600 mm
  • Coil OD: 1600 mm
  • Coil ID: 450-560 mm

read more…
